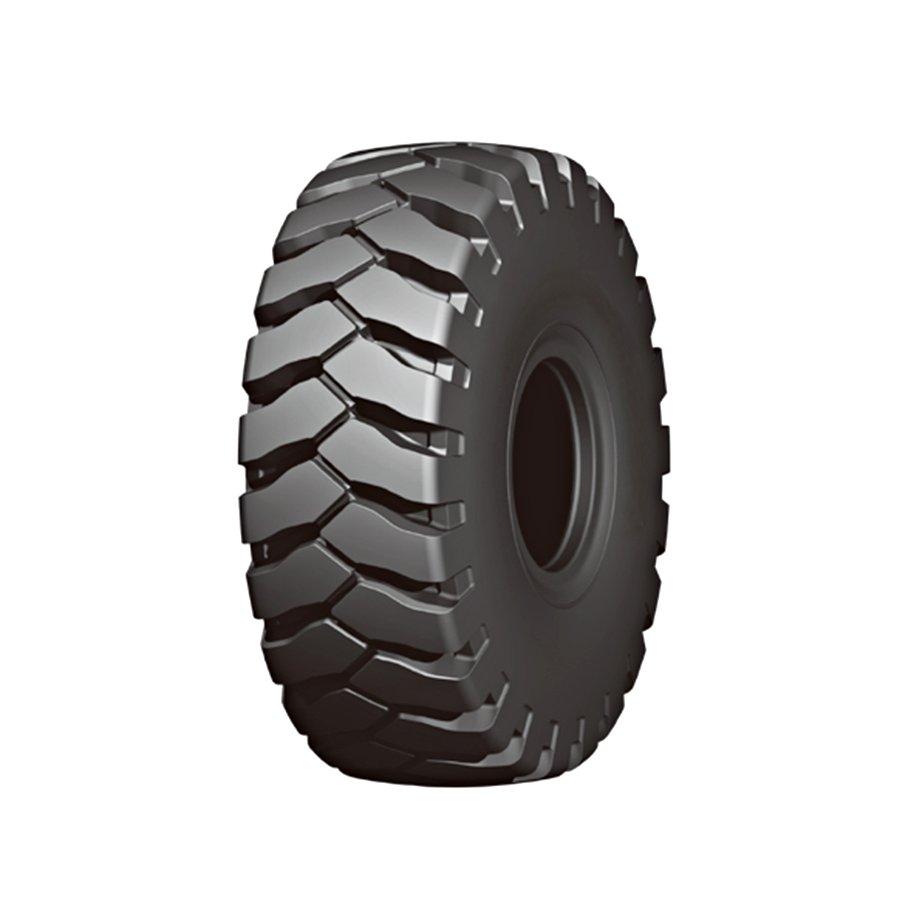

AX501 L-5
Product introduction：
Pattern name: AX501
Pattern model: L-5 RADIAL
Purpose: Loader and earthmover
Product Details
1.Directional tread pattern enhances traction in mud and soft conditions.
2.Excellent performance in severe rock application.
3.Deep tread depth provides outstanding wearing life.
Product data
| parameter table | ||||||||||||||
| Size | Load index | TRA code | Speed index | Rim | Section width (mm)/inch | Overall diameter (mm)/inch | Tread depth (mm)/32nds | Load capacity （kg） | Inflation pressure (kPa)(psi) | Type | ||||
| 20.5R25 | ☆☆ | L-5 | A2 | 17.00/2.0 | 521 | 20.5 | 1548 | 60.9 | 70 | 88.2 | 11500 | 650 | 94 | TL |
| 23.5R25 | ☆☆ | L-5 | A2 | 19.50/2.5 | 597 | 23.5 | 1673 | 65.9 | 76 | 95.7 | 14500 | 650 | 94 | TL |
| 26.5R25 | ☆☆ | L-5 | A2 | 22.00/3.0 | 673 | 26.5 | 1798 | 70.8 | 85 | 107.1 | 18500 | 650 | 94 | TL |
| 29.5R25 | ☆☆ | L-5 | A2 | 25.00/3.5 | 749 | 29.5 | 1921 | 75.6 | 92 | 115.9 | 22400 | 650 | 94 | TL |
