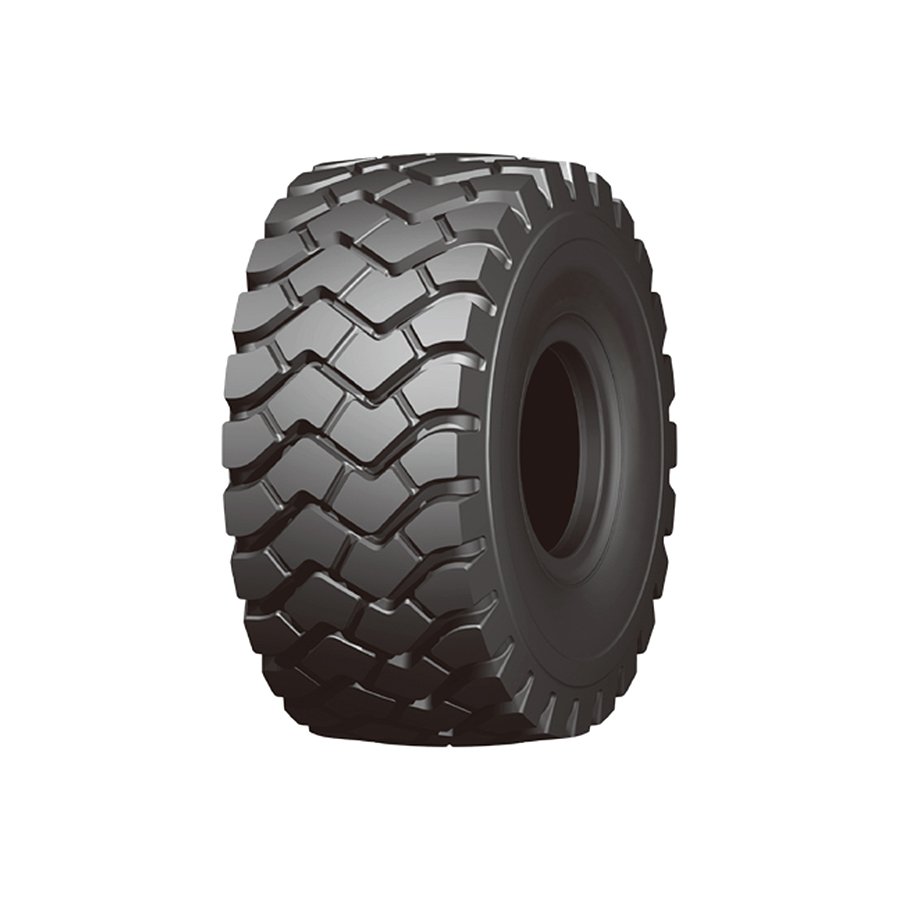

AX303 L-3
Product introduction：
Pattern name: AX303
Pattern model: L-3 RADIAL
Purpose: Loader and earthmover
Product Details
1.Excellent lateral grip on soft terrain due to self-cleaning tread pattern.
2.Excellent traction on rocky, gravel and packed earth surface in mines, quarries and construction sites.
3.Enhanced radial construction provides superior flotation and improves stability
Product data
| Parameter table | ||||||||||||||
| Size | Load index | TRA code | Speed index | Rim | Section width(mm)/inch | Overall diameter(mm)/inch | Tread depth(mm)/32nds | Load capacity（kg） | Inflation pressure(kPa)(psi) | Type | ||||
| 26.5R25 | ☆☆ | L-3 | A2 | 22.00/3.0 | 673 | 26.5 | 1750 | 68.9 | 44 | 55.4 | 18500 | 650 | 94 | TL |
| 29.5R25 | ☆☆ | L-3 | A2 | 25.00/3.5 | 749 | 29.5 | 1874 | 73.8 | 44 | 55.4 | 22400 | 650 | 94 | TL |
| 750/65R25 | ☆☆ | E-3/L-3 | A2 | 24.00/3.0 | 754 | 29.7 | 1611 | 63.4 | 45 | 56.7 | 18500 | 625 | 94 | TL |
| 850/65R25 | ☆☆ | E-3/L-3 | A2 | 27.00/3.5 | 852 | 33.5 | 1741 | 68.5 | 46 | 58.0 | 23000 | 625 | 94 | TL |
