AX307 L-3
Product introduction：

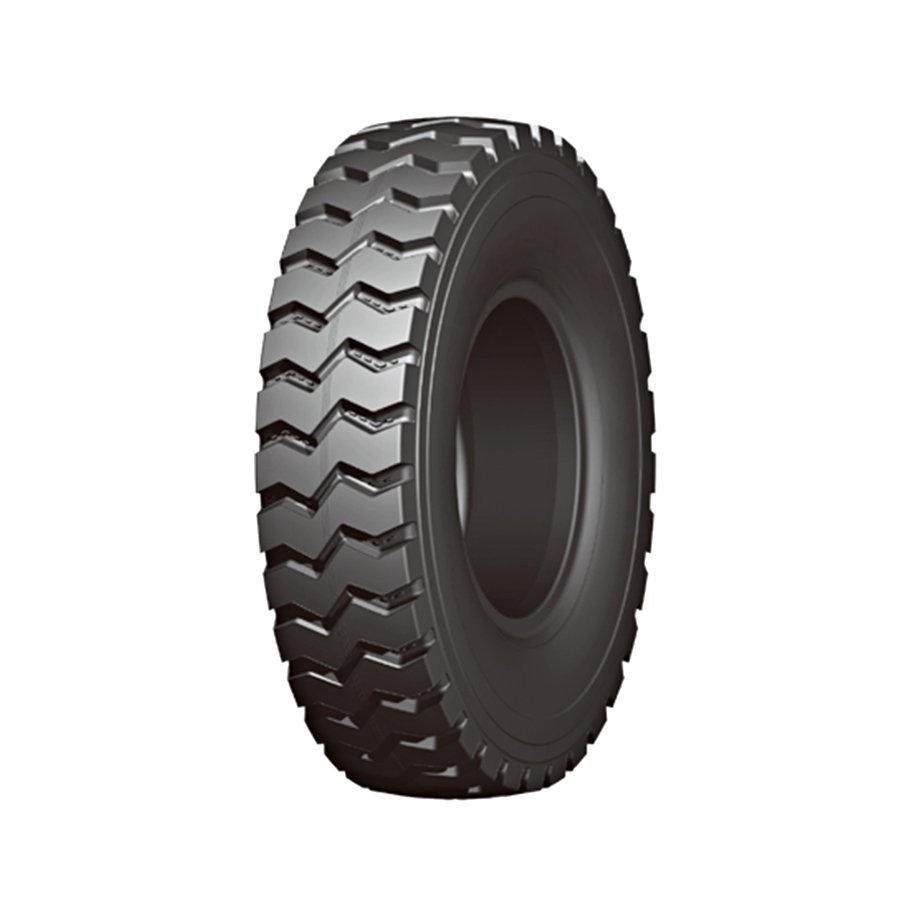

Pattern name: AX307
Pattern model: L-3 RADIAL
Purpose: Mining dumping truck
Product Details
1.Excellent traction due to wide and deep transverse grooves.
2.Exceptional resistance to aggression
3.Robust shoulder and enhanced bead offer outstanding tire life.
Product data
| Parameter table | ||||||||||||||
| Size | Load index | TRA code | Speed index | Rim | Section width (mm)/inch | Overall diameter (mm)/inch | Tread depth (mm)/32nds | Load capacity （kg） | Inflation pressure (kPa)(psi) | Type | ||||
| 14.00R25 | ☆☆☆ | E-3 | B | 10.00/2.0 | 361 | 14.2 | 1354 | 53.3 | 27 | 34.0 | 5800 | 700 | 102 | TT |
| 14.00R25 | ☆☆☆ | E-3 | B | 10.00/1.5 | 361 | 14.2 | 1354 | 53.3 | 27 | 34.0 | 5800 | 700 | 102 | TL |
